LED Backlight for TV

✨Make your movie or game as shocking as in the cinema

Multiple bright colors make pictures and movies on TV more vivid. It also balances the brightness of unlit walls and your TV PC screen, which greatly reduces the strain on your eyes.

Lighting Environment

A variety of phantom lighting modes to create an immersive lighting environment, the lights can be rhythmic with music

Display Cabinet Lighting

Create colorful display cabinet lighting, control the automatic color change through Bluetooth APP, and link with the whole house lighting.

The box can be used as long as you connect it to a monitor via USB. Suitable for all sizes of TVs and monitors up to 120 inches. Compatible with most brands of TVs on the market

Supports 4K high refresh mode, perfectly adapted to PC, PS4, PS5, XBOX and other mainstream game consoles.

FEATURES:

✔️ Protect your eyes ✔️: When you watch TV in the dark, your eyes have to constantly adjust between a bright screen and a dark environment. The TV backlight increases the ambient light, reducing eye strain and headaches. It reduces eyestrain caused by differences in image brightness and provides a beautiful backlight when watching TV

✔️ Adjustable brightness ✔️: The brightness can be adjusted at any time in the setting center to achieve eye comfort.

✔️ Safe to use: Working voltage of 5 V and equipped with short circuit protection and memory function. Extremely heat-resistant, touchable and safe for children. The strip lights on the back are designed with strong adhesive, providing enough brightness to ensure a perfect backlight experience during the day

✔️SPECIAL MUSIC MODE ✔️: Spectrum with lights and colors that automatically adjust to the ambient noise, LED lights sync with the music. The light strip matches any type of music, including slow, relaxing music and dance music.

Working principle

You need to follow the instructions in the manual to properly install the four different lights at the top, bottom, left and right on the back of the TV.  Then connect the TV and the control box with the communication line. The software analyzes what you are currently watching on the screen, be it a movie, a game or something else, and sends this information to the device, which in turn brightens the surface behind the screen with matching colors using the RGB LEDs present in the device.

Customer Questions & Answers:

1.Question: Does it work for PC gaming?

Answer: As long as you are connected to a monitor via USB, the box can be used

2.Question: Our computer is an iOS system, can it be used?

Answer: No problem

3.Question: Is this product only available for Android smart TVs?

Answer: We have solved all the problems. Both smart TV and non-smart TV can be used, as well as satellite TV.

4. Question: How does it work?

Answer: When our product is connected to a TV or PC, it will detect the color around the screen, and each area around the screen will match the color of a part of the light bar. There is almost no delay. You only need to purchase the corresponding size of the TV or PC light bar to match the color of the light bar in the environment.

SPECIFICATIONS:

• Item Weight: 17.64 ounces/500 g
• Size: As pictured
• Color: Multicolor
• Material: Plastic
• Voltage: 5 volts
• Current: 8 amps
• Bulb Type: LED
• Special Features: Memory function, Dimmable, DIY colors, Timmer setting, App control
• Batteries required?: No

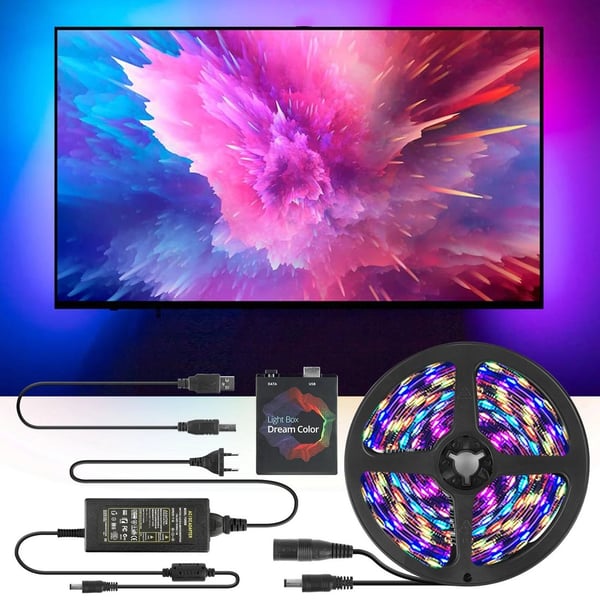

PACKAGE INCLUDES:

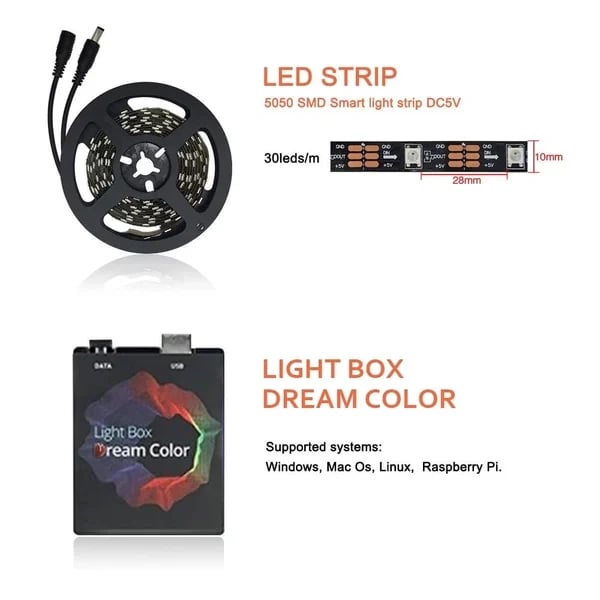

1 * LED Strip
1 * Light Box
1 * USB Cable
1 * Power Adapter (5V/8A)
1 * Product Manual

Installation requirements:
1. A streamer lighting set
2. A desktop or laptop computer, no requirements for the computer system or configuration.
(If installed on a TV, the computer signal is output to the TV, and the TV is equivalent to a monitor)
3. Ambibox software, Prismatik software or other similar software Ambibox download: (shared free software, please feel free to use)
https://pan.baidu.com/s/1PKiR9uL90PFViHXo2RneCA
(Contains software, setup instructions, driver files, test images)
http://www.ambibox.ru/en(Software only)

1. Switch
2. Set the switch shortcut key
3. Mode:
  3.1 Screen mode. Changes according to the screen, colorful effect.
  3.2 Fixed monochrome
  3.3 Dynamic monochrome. The speed of change is adjustable.
  3.4 Music mode. Changes with the music.
    3.4.1 LED parameter setting
    3.4.2 Sound volume
  3.5 Plugin mode
4. How to identify screen color
You can try different ways,
Windows8. When playing full-screen games,
As long as it works correctly, usually choose
You may need to install PlayClaw software.
5. Screen recognition area settings (corresponding to the position of the lamp beads
  5.1 Number of LEDs on the top or bottom
  5.2 Number of LEDs on the left or right
  5.3 Adjust the area on the top and bottom
  5.4 ​​Adjust the area on the left and right
  5.5 Arrange the cables from the bottom, excluding the middle of the bottom
  5.6 Four-sided and three-sided wiring selection
  5.7 Clockwise and counterclockwise wiring
  5.8 Is there a right angle
6. Speed ​​setting, set to 20-25. If the computer becomes stuck, especially when playing games,
please set a lower value, about 10.
7. Device selection: Adalight
8. Color selection Select: RGB. If the screen color is inconsistent with the LED display color during the test, please try other options.
9. Port. Yinicelighting port selection on the computer. Note that the end faces of different computers are inconsistent. Please check in "Computer Management".
10. The total number of LEDs. How many LED beads are used when installing the light strip, and the excess parts can be cut off.
Note that the light strip is installed in a rectangular shape, with the same number of top and bottom sides, and the same number of left and right sides.
11. If the port selection is correct, it will display "Connected", "Device status:
connected".
If the port selection is wrong, it may also display "Device
status:connected". The port must be correct.
12. 7 devices and 9 ports are selected correctly, it will display "Connected", "Adalight:
connected"

13. Save the settings. The saved settings do not need to be set again next time.

PRO TIPS:
If you find your colors are washed out or appear more white than colorful, adjust your gamma settings. If you're getting a white backlight on a pure black screen, increase the sample zone size. This does require a little tweaking, but it's worth it!

WELL DONE!👍
